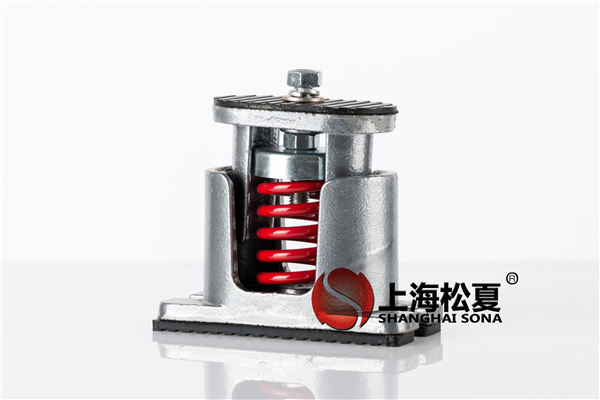

安装弹簧减震器需要注意哪些事项?

    安装弹簧减震器需要注意哪些事项?

What should I pay attention to when installing spring shock absorber?

安装弹簧减震器需要注意哪些事项?
   1.自立式弹簧减震器规范(主要用于抽水机、风机、主机等机器设备,合适惯性台座运用)

1. Specification for self-supporting spring shock absorbers (mainly used for pumps, fans, mainframes and other machinery and equipment, suitable for inertial pedestals)
   2.弹簧型隔震器均为无外壳自立式,底板和基座间应配有6毫米厚之氯丁橡胶消声防滑垫片。

2. All spring-type isolators are self-supporting without shell, and 6mm-thick neoprene silenced non-slip gaskets shall be provided between the base plate and the base.
   3.整个隔震器均须配有坚固栓接在设备上的水平调校螺钉。

3. The entire isolator shall be provided with a horizontal setting screw firmly bolted to the equipment.
   4.弹簧的横向硬度不可以以小于其定额垂直硬度的80%。
   4. The lateral hardness of the spring may not be less than 80% of its fixed vertical hardness.
   5.弹簧的隔震幅度须能足够负担50%之另外负荷。

5. The isolation amplitude of the spring shall be sufficient to bear an additional load of 50%.

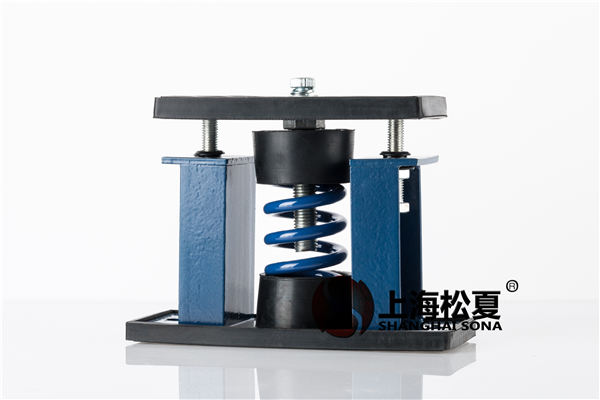

弹簧减震器
